APPLICATION:
EB3 2.3” linear lighting is a unique linear series that brings any space to the center stage and available in pendant, surface, wall and recessed mounting (Refer to EB3 recessed spec sheet for recessed mounting). These timeless, streamlined forms blend well with contemporary decors and modern workplaces. These linear luminaries are available in 2ft, 3ft, 4ft and 8ft, simply provide wide, powerful lighting to any atmosphere with continuous runs. It can provide smooth uplight and downlight, allowing for wider spacing between fixtures and better ceiling light uniformity. Unleash lighting design flexibility with EB3 with different shapes and patterns, it adds fun factor into each room. These creations will let you suggest rhythm, communicate meaning and showcase element of life.

FEATURES:
- It offers a selection of professional lens such as diffuser, louver, micro reflector and deep regressed lens to meet your different requires.
- Available in 2’, 3’,4’ and 8’, individual units or continuous runs. (Louver option is available in 4’ and 8’ only. Deep regressed lens and micro reflector options are available in 4’ only)

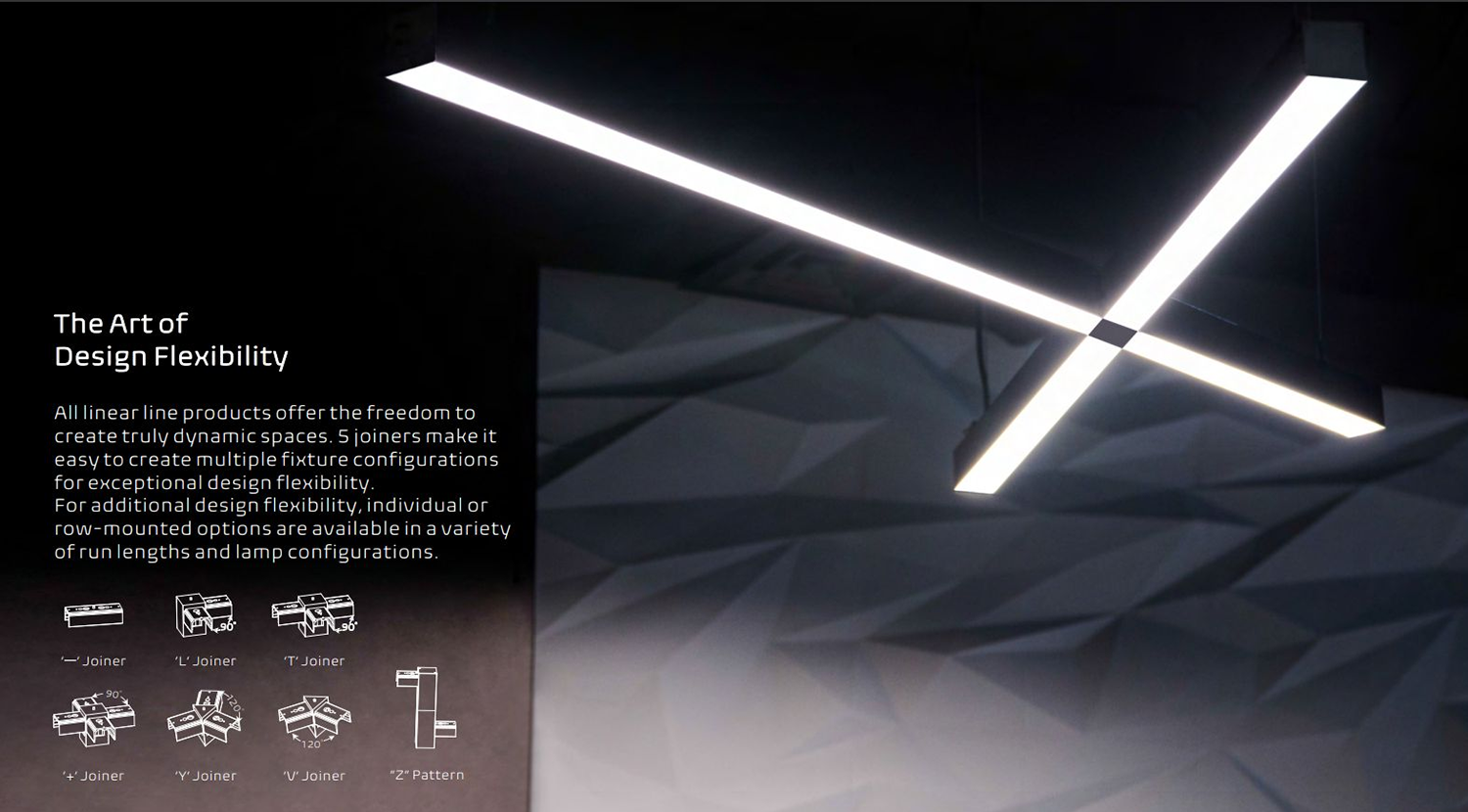

- Custom pattern with optional L, X, T, Y, V, Z non-lit joiners.
- Extruded aluminum housing.
- Powder coat white and black finish or custom.

MOUNTING:
- Pendant and surface mount are compatible with drywall and drop ceiling including 15/16” , 9/16” flat T-grid and 9/16”, 15/16” screw slot grid ceiling.
- 5ft adjustable cable length is standard for pendant mount (optional 12ft adjustable cable available).
- Individual or continuous run, up to 40ft in 120V AC, 100ft in 277V AC
- Custom Pattern with optional L, X, T, V, Y, Z joiners.

LED:
- Wattage selectable (50%/75%/100%)
- CCT adjustable from 3000K, 3500K, 4000K (Micro reflector option is only available in 3500K or 4000K single CCT)
- 7 different light distributions are available by a built-in dip switch in the field.
- IES LM-80 tested.
- Color Rendering Index: >80
- Minimum 50,000 hours life with 87.8% lumen maintenance in 25°C ambient temperature.

ELECTRICAL:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- Standard 0-10V dimming which continuous dims to 10% that works with low voltage dimming controls.
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).0.9

FINISH:
- Standard powder-coat textured white or black painted finish on exposed trim, consult factory for custom colors.

LISTING:
- UL / CUL listed.
- UL listed for dry & damp location.
- 5 years limited warranty.
