APPLICATION:

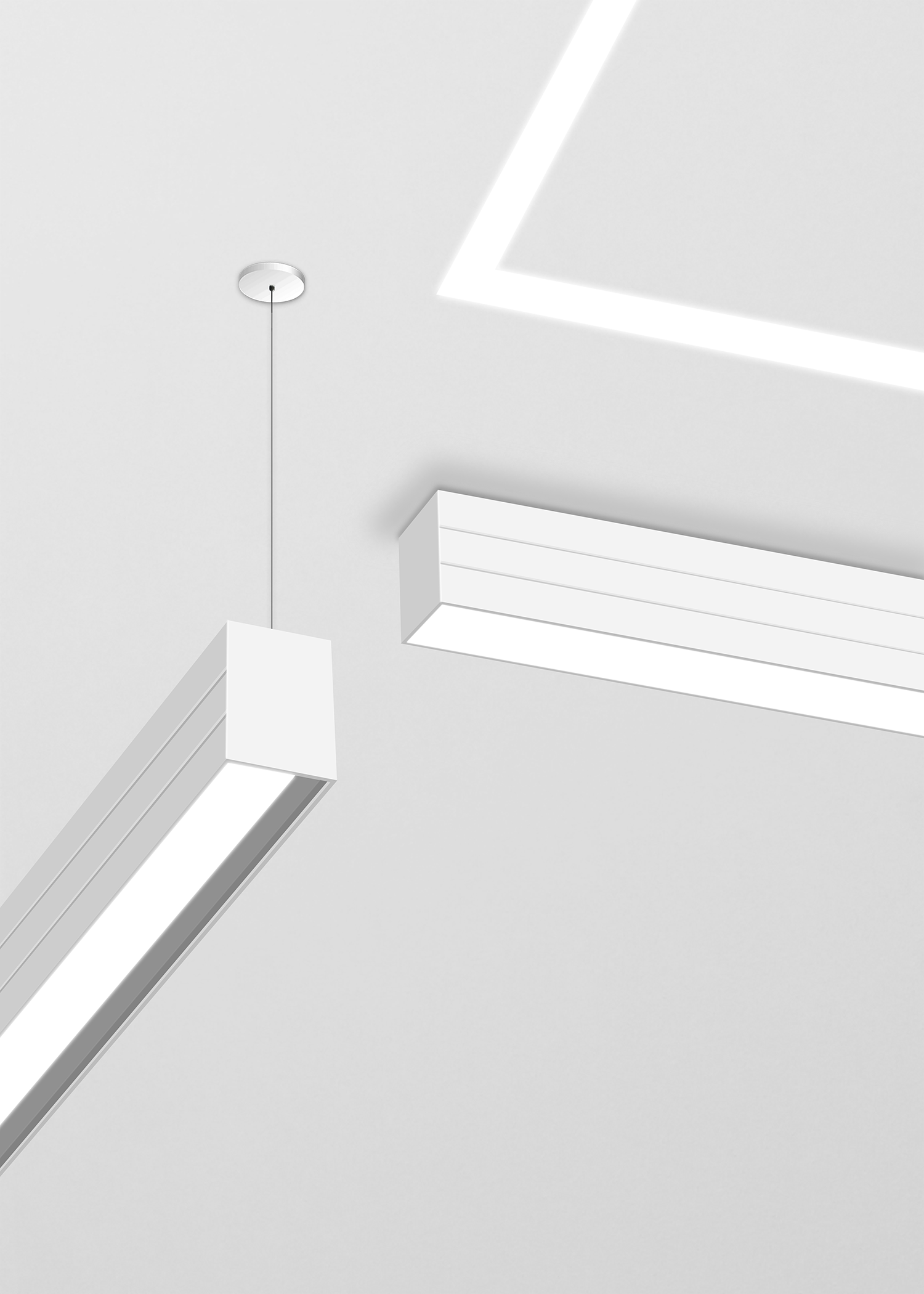

EB3 Recessed 2.3” linear lighting is a unique linear series that brings any space to the center stage and available in recessed mounting. (Please refer to other EB3 spec sheet for pendant, surface, and wall mounting options.) These timeless, streamlined forms blend well with contemporary decors and modern workplaces. These linear luminaries are available in 2ft, 3ft, 4ft and 8ft, simply provide wide, powerful lighting to any atmosphere with continuous runs. It can provide smooth downlight, allowing for wider spacing between fixtures and better ceiling light uniformity. Unleash lighting design flexibility with EB3 with different shapes and patterns, it adds fun factor into each room. These creations will let you suggest rhythm, communicate meaning and showcase element of life.

FEATURES:
- It offers a selection of professional lens such as standard flat lens, regressed lens and wall wash.
- Available in 2’, 3’,4’ and 8’, individual units or continuous runs.
- Custom pattern with optional L shape lit joiners.
- Extruded aluminum housing.
- Powder-coated white finish as standard (contact factory for other optional finishes)
- Seamless with Line joiner with no socket shadows or hot-spots.

MOUNTING:
- Compatible with T-bar and drywall ceiling (trimless spackle flange).
- Mounting kits are shipped separately for field installation.
- Individual or continuous run, up to 40ft in 120V AC,100ft in 277V AC
- Custom Pattern with optional L shape lit joiners.

LED:
- Wattage selectable (50%/75%/100%)
- CCT adjustable from 3000K, 3500K, 4000K
- IES LM-80 tested.
- Color Rendering Index: >80
- Minimum 50,000 hours life with 87.8% lumen maintenance in 25°C ambient temperature.

ELECTRICAL:
- High power factor electronic driver, operate from a 110 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- Standard 0-10V dimming which continuous dims to 10% that works with low voltage dimming controls.
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).

FINISH:
- Standard powder-coat textured white painted finish on exposed trim, consult factory for custom colors.

LISTING:
- UL / CUL listed.
- UL listed for dry & damp location.
- 5 years limited warranty.
